Case Study: Precision Fabrication of Mission-Critical Components for a Large-Scale Water Treatment System

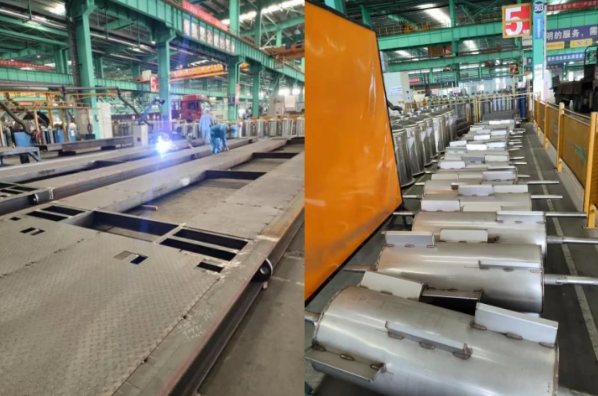

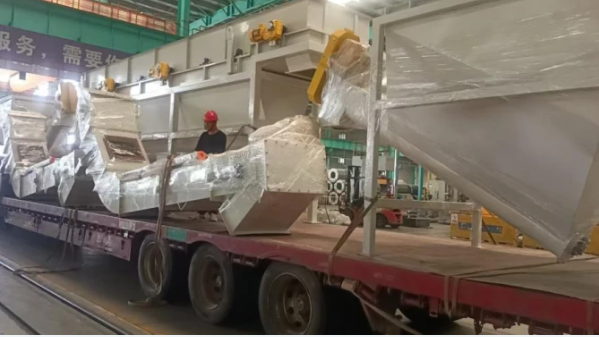

Recently, several fully loaded trucks departed Openex Metalfab’s production facility, carrying custom-manufactured carbon steel and stainless steel components for a large-scale environmental engineering project. This delivery marked more than the completion of an order—it showcased Openex Metalfab’s core strength in custom metal fabrication and its role as a behind-the-scenes force supporting global environmental infrastructure.
Project Overview: Engineering Steel for Extreme Operating Conditions

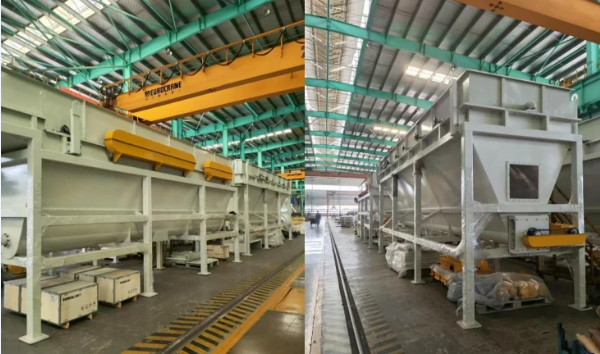

Environmental protection equipment—such as wastewater treatment tanks, exhaust gas adsorption towers, sludge drying systems, and chemical processing vessels—operates under some of the harshest industrial conditions imaginable.
These systems demand metal components that can withstand:
High humidity and continuous exposure to moisture
Strong acid and alkali corrosion
Long-term pressure sealing and structural loads
24/7 operation with zero tolerance for failure
In this project, the client required fully customized, non-standard components, manufactured strictly according to proprietary engineering drawings.
This created three non-negotiable requirements:
Material integrity: Carbon steel for structural strength; stainless steel (304 / 316L) meeting precise corrosion-resistance grades
Dimensional stability: Tolerances controlled at the millimeter level—or tighter—to ensure seamless on-site assembly
Complete, on-time delivery: Any missing part could delay the entire environmental system installation
To meet these demands, Openex Metalfab assembled a dedicated project team and executed a precision-driven, full-process manufacturing strategy.
More Than Fabrication: A Full-Process Intelligent Manufacturing System
Many people think metal fabrication is simply cutting and welding. At Openex Metalfab, it is a disciplined engineering system. For this environmental project, we implemented a six-stage quality-controlled manufacturing workflow.
Drawing Optimization & DFM Review
“Build-to-print” does not mean blind execution.
Our engineering team conducted a Design for Manufacturability (DFM) review using professional 3D modeling software to simulate:
Sheet metal unfolding
Bending interference
Welding deformation risks
Where improvement was possible, we proactively advised the client.
Example:
For a stainless steel connector with a tight R-angle radius, we recommended a minor bend-radius adjustment. This eliminated the risk of micro-cracking during forming while preserving functional performance—significantly improving long-term durability.
Raw Material Traceability & Pre-Processing
Quality begins with raw materials.
All incoming carbon steel and stainless steel plates undergo PMI (Positive Material Identification) spectral analysis to verify chemical composition. This ensures full compliance with specified grades and prevents material substitution risks.
We also perform precision leveling to eliminate internal stress, creating a stable foundation for high-accuracy cutting and forming.
Fiber Laser Cutting & Intelligent Nesting
Openex Metalfab uses high-power fiber laser cutting systems, delivering:
Smooth, vertical cut edges
Minimal heat-affected zones
Superior dimensional accuracy
Key advantages include:
Intelligent nesting algorithms to maximize material utilization and reduce waste
Micro-joint technology to prevent part movement or warping during cutting
This approach reduces cost while aligning with sustainability and resource-efficiency goals.
High-Precision CNC Bending
Metal has memory—and controlling springback is critical.
This project involved complex geometries with multiple bends and irregular contours. Our CNC press brake centers, operated by highly experienced technicians, applied precise springback compensation.
Bending angle tolerance: ±0.5°
Suitable for thick carbon steel plates and scratch-free stainless steel forming
The result: sharp edges, smooth lines, and perfect alignment with design intent.
Welding: The Structural Core
For environmental equipment handling liquids and gases, weld integrity determines system safety.
Openex Metalfab employs certified welders with extensive experience in pressure-bearing structures.
Stainless steel: TIG welding with full penetration, single-side welding and double-side forming
Carbon steel: MIG/MAG shielded welding for deep fusion and high strength
All critical welds undergo NDT (Non-Destructive Testing) to confirm:
No porosity
No slag inclusions
No cracks
Surface Treatment & Transport Protection
Before shipment:
Carbon steel parts receive shot blasting and anti-corrosion primer
Stainless steel components undergo pickling and passivation, forming a dense protective oxide layer
Custom wooden crates and shock-resistant packaging ensure damage-free delivery, even under long-distance transportation conditions.
Why Global Clients Choose Openex Metalfab
This successful delivery represents just one example of Openex Metalfab’s daily operations. Our reliability is built on three core strengths.
In-House Capacity & Advanced Equipment
We operate multi-kilowatt fiber laser cutting machines, heavy-duty CNC press brakes, and automated welding systems—allowing full in-house production from raw plate to finished component.
Flexible Non-Standard Manufacturing Expertise
Our flexible production system supports single-piece prototyping, small-batch trials, and scalable mass production—making it ideal for the environmental, energy, and industrial equipment sectors.
A Partner-First Manufacturing Philosophy
We deliver more than parts. Our concierge-style service includes:
24-hour quotation and technical response
Transparent production updates
Full post-delivery traceability
Building the Future with Precision and Integrity
As the world accelerates toward carbon neutrality and sustainable industrialization, demand for reliable environmental equipment continues to grow.
Openex Metalfab remains committed to precision, efficiency, and long-term reliability, transforming complex drawings into dependable industrial solutions.
Contact Openex Metalfab
Looking for a Manufacturing Partner Who Truly Understands Your Drawings—and Your Deadlines?
If you need carbon steel or stainless steel custom-fabricated components for environmental protection equipment, engineering machinery, or non-standard assemblies—
Openex Metalfab is ready to support your project.
📩 Send us your drawings or requirements today.
👉 Contact us now to start your high-efficiency manufacturing journey
📞 Phone: +86 186 5928 0806
📧 Email: sales3@openex.com.cn
Leave to us—so you can focus on growing your business.
